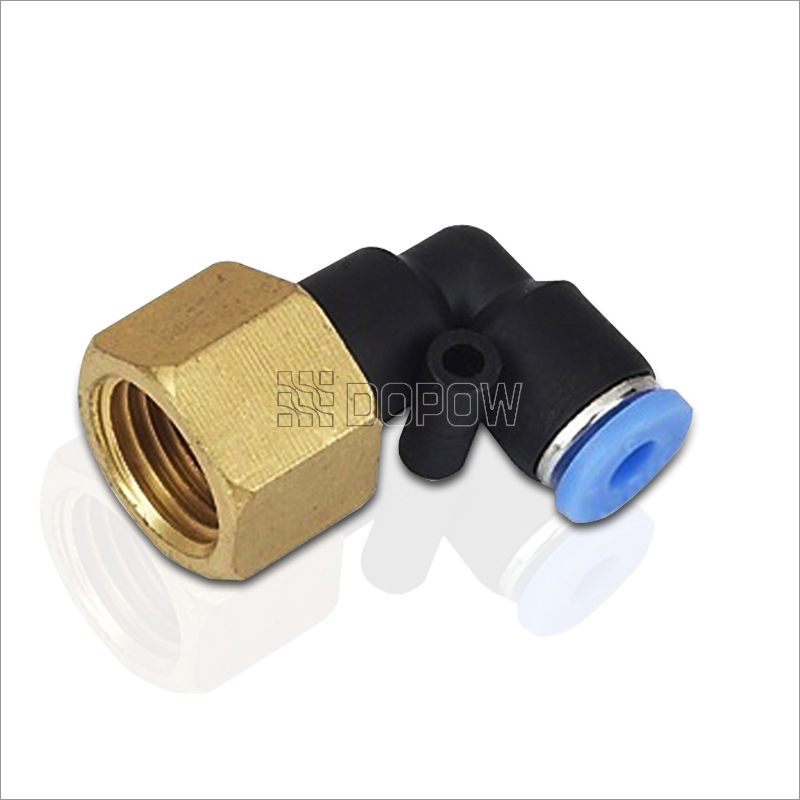

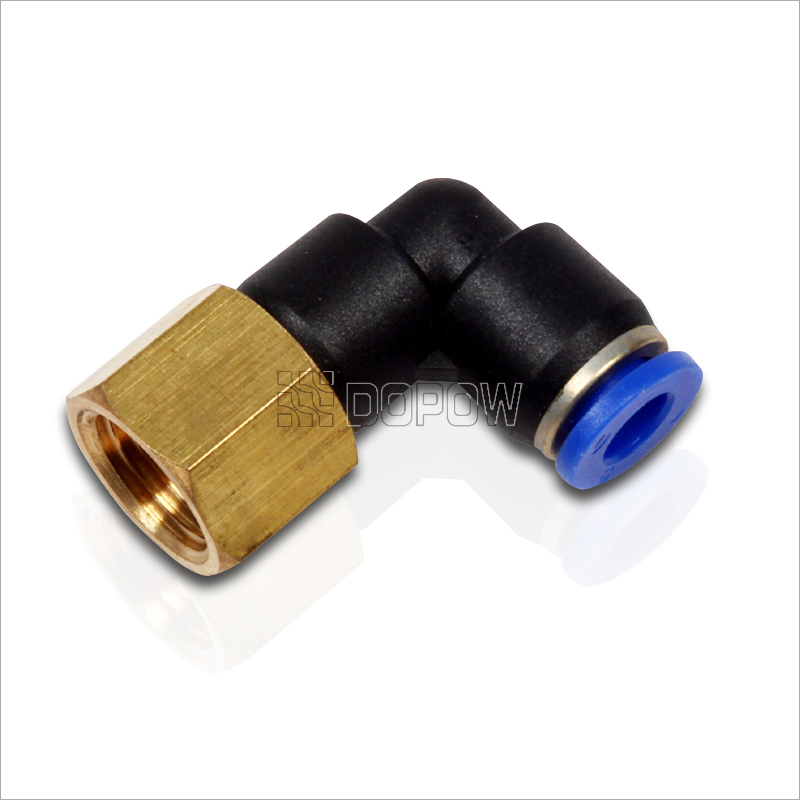

PLF 快速接頭 PLF接頭 L型內螺紋二通 氣動接頭
PLF 快速接頭 PLF接頭 L型內螺紋二通 氣動接頭
PLF 快速接頭 PLF接頭 L型內螺紋二通 氣動接頭
1. 全檢–在8公斤的壓力下經過漏氣檢測，確保產品穩定.
2.耐高壓–30公斤壓力下保持兩個小時不會出現任何問題.
3.?所有錐管螺紋預涂聚四氟乙烯防漏膠，密封性能好
4.溫度范圍:?0~1.0?MPa?(0~150?PSI).
5.壓力范圍:?0~60oC?(32~140oF).
-
- PLF 快速接頭 PLF接頭 L型內螺紋二通 氣動接頭
螺紋二通接頭尺寸圖.jpg)
| 型號 | ФD | Rc | A | E | X | Y | C |
| PLF4-M5 | 4 | M5 | 5.5 | 19.5 | 11.6 | 10.1 | 16 |
| PLF4-01 | 4 | RC1/8 | 8 | ||||
| PLF4-02 | 4 | RC1/4 | 11 | ||||
| PLF6-M5 | 6 | M5 | 5.5 | 20.5 | 14 | 12.5 | 17 |
| PLF6-01 | 6 | RC1/8 | 8 | 12.5 | |||
| PLF6-02 | 6 | RC1/4 | 11 | 12.5 | |||
| PLF6-03 | 6 | RC3/8 | 12 | 12.5 | |||
| PLF6-04 | 6 | RC1/2 | 14 | 12.5 | |||
| PLF8-01 | 8 | RC1/8 | 8 | 21 | 16 | 14 | 18 |
| PLF8-02 | 8 | RC1/4 | 11 | ||||
| PLF8-03 | 8 | RC3/8 | 12 | ||||
| PLF8-04 | 8 | RC1/8 | 14 | ||||
| PLF10-01 | 10 | RC1/8 | 8 | 25 | 19 | 15.5 | 20.5 |
| PLF10-02 | 10 | RC1/4 | 11 | ||||
| PLF10-03 | 10 | RC3/8 | 12 | ||||
| PLF10-04 | 10 | RC1/2 | 14 | ||||
| PLF12-02 | 12 | RC1/4 | 11 | 27.5 | 21.5 | 18.5 | 22.5 |
| PLF12-03 | 12 | RC3/8 | 12 | ||||
| PLF12-04 | 12 | RC1/2 | 14 | ||||
| PLF16-03 | 16 | RC3/8 | 11 | 32.5 | 27 | 24 | 24 |
| PLF16-04 | 16 | RC1/2 | 14 | 32.5 | 27 | 24 | 24 |
