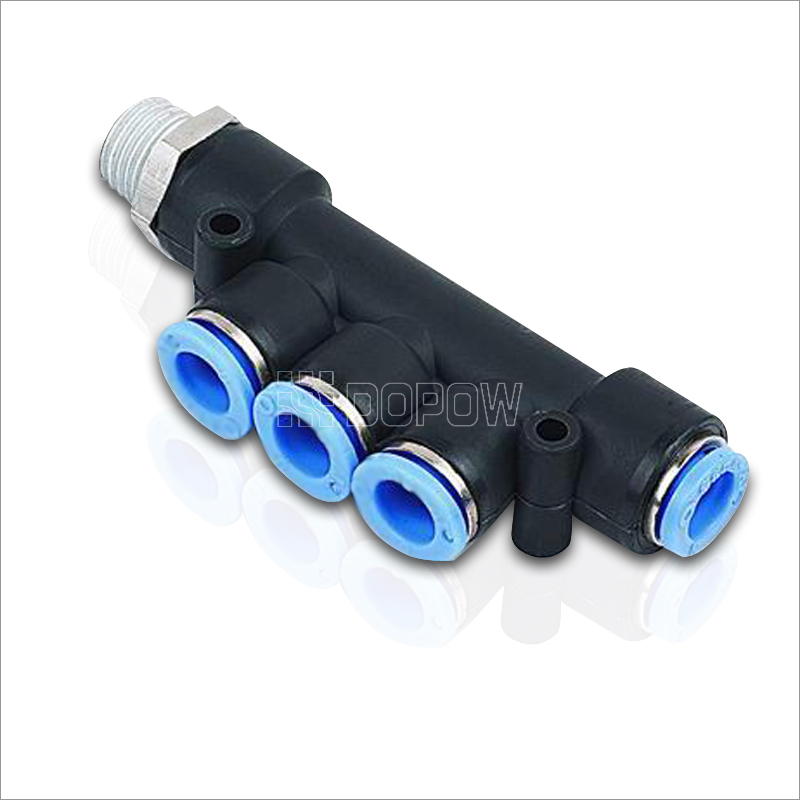

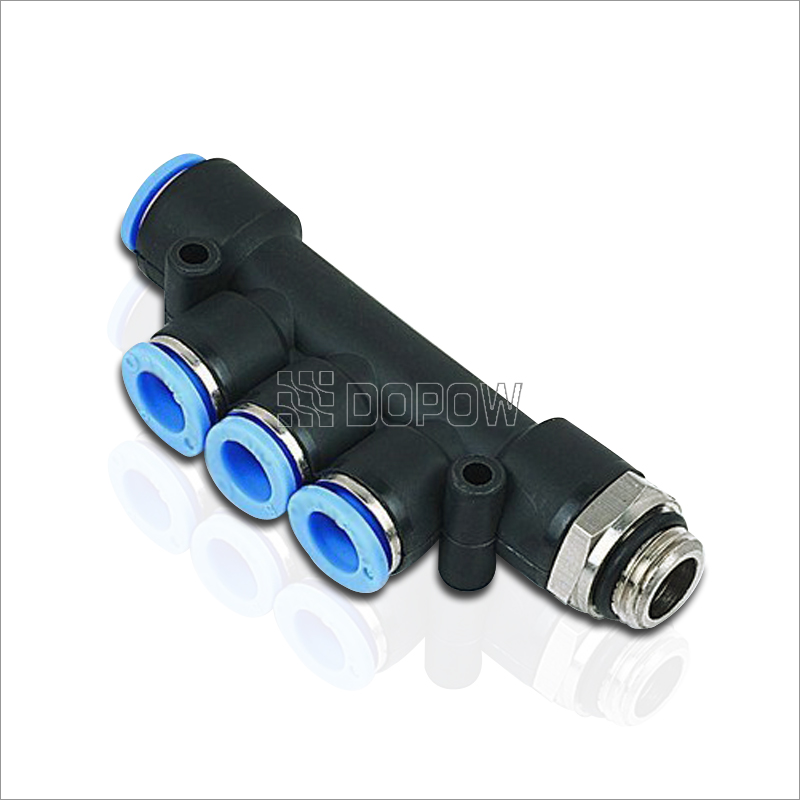

快速接頭配件 PKB 螺紋五通變徑 氣動氣管接頭
快速接頭配件 PKB 螺紋五通變徑 氣動氣管接頭
1. 全檢–在8公斤的壓力下經(jīng)過漏氣檢測，確保產(chǎn)品穩(wěn)定.
2.耐高壓–30公斤壓力下保持兩個小時不會出現(xiàn)任何問題.
3.?所有錐管螺紋預涂聚四氟乙烯防漏膠，密封性能好
4.溫度范圍:?0~1.0?MPa?(0~150?PSI).
5.壓力范圍:?0~60oC?(32~140oF).
-
- 快速接頭配件 PKB 螺紋五通變徑 氣動氣管接頭
| 型號 | ФD | A | H | R | E | F2 | B | X | Y | X1 | C |
| PKB4-01 | 4 | 7.5 | 10 | R1/8 | 19 | 36 | 63.5 | 11.9 | 10.5 | 10 | 14.9 |
| PKB4-02 | 4 | 9.5 | 14 | R1/4 | 19 | 36 | 66.5 | 11.9 | 10.5 | 10 | 14.9 |
| PKB6-01 | 6 | 7.5 | 12 | R1/8 | 20.3 | 42 | 67.8 | 13.9 | 12.5 | 12 | 15.7 |
| PKB6-02 | 6 | 9.5 | 14 | R1/4 | 20.3 | 42 | 69.8 | 13.9 | 12.5 | 12 | 15.7 |
| PKB6-03 | 6 | 10.5 | 17 | R3/8 | 20.3 | 42 | 72.3 | 13.9 | 12.5 | 12 | 15.7 |
| PKB8-01 | 8 | 7.5 | 14 | R1/8 | 24.3 | 48 | 69.3 | 15.9 | 13.9 | 14 | 18.2 |
| PKB8-02 | 8 | 9.5 | 14 | R1/4 | 24.3 | 48 | 71.3 | 15.9 | 13.9 | 14 | 18.2 |
| PKB8-03 | 8 | 10.5 | 17 | R3/8 | 24.3 | 48 | 72.8 | 15.9 | 13.9 | 14 | 18.2 |
